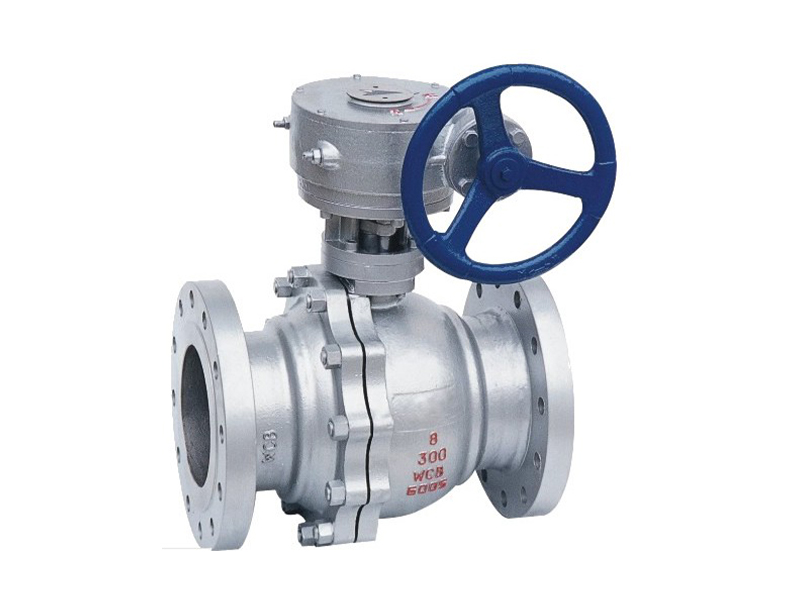

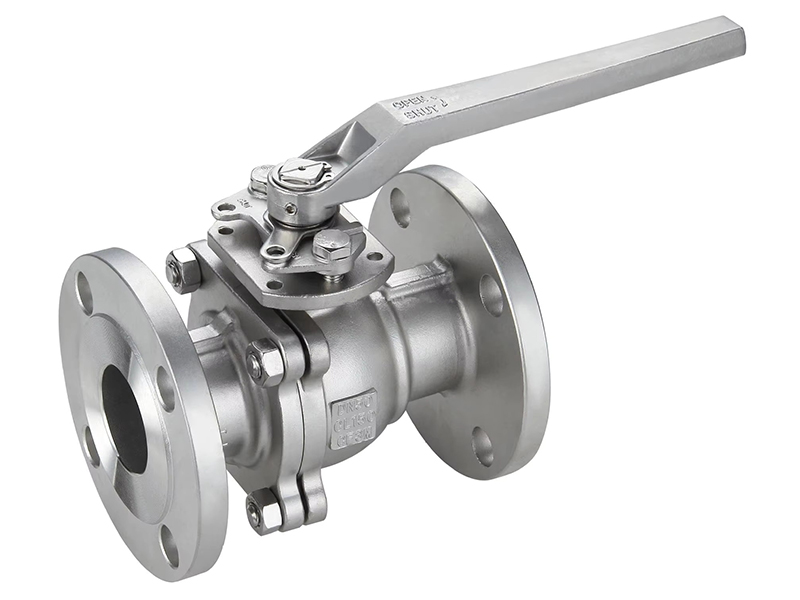

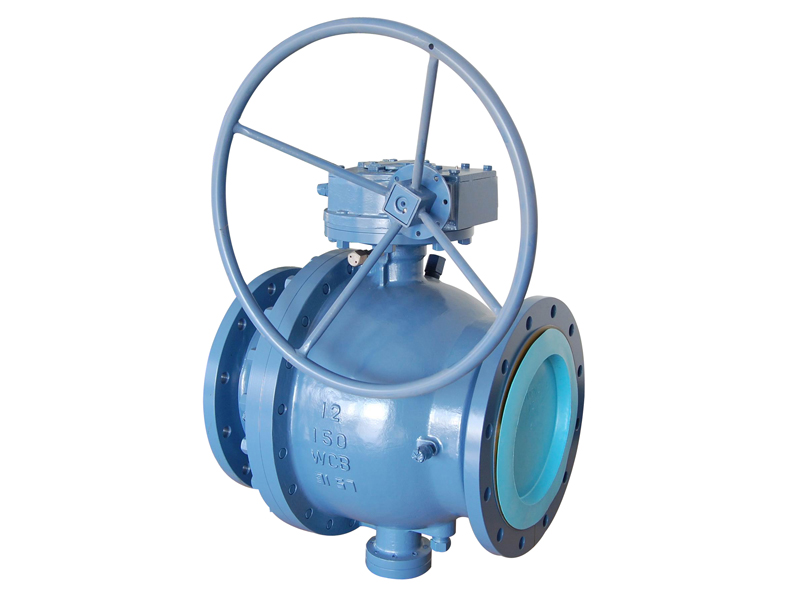

Floating Ball Valve

Floating Ball Valve

ONERO’s floating ball valve is a valve with its ball floating(not fixed by a trunnion) inside the valve body; it drifts toward to the downstream side and tightly pushes against the seat under the medium pressure to ensure a reliable seal. The floating ball valve is a simple design with good sealing performance relying on the seat material to withstand the workload as the sealing pressure is barred by the seat ring.

Feel free to contact us, get a quick quotation from our expert at sales@onero-valves.com

Technical Specifications

· Design: API6D / ASME B16.34/ BS EN ISO 17292

· Face to Face: ASME B16.10

· Flanged Ends: ASME B16.5 /ASME B 16.25/ ASME B 16.11

· BW Ends: ASME B16.25

· Test & inspection : API 598

· Fire Safe Test: API 607/API6FA

Product Range

Body material: Carbon steel, Stainless steel, Alloy steel ,Monel, Duplex, Inconel,etc

Size range:1/2"～8"

End Connection: RF, RTJ,BW, NPT,SW

Pressure rating: Class150 – Class600

Working temperature: -46℃ - +200℃

Operation : wrench, lever,worm gear, electric, etc

Features and Benefits

· 2-3 Pieces Body

· Floating Ball

· Full & Reduced Bore

· Anti-Static Device

· Blow-out Proof Stem

· Fire Safe Design

· Low Emission

· Self Relieving Seat
