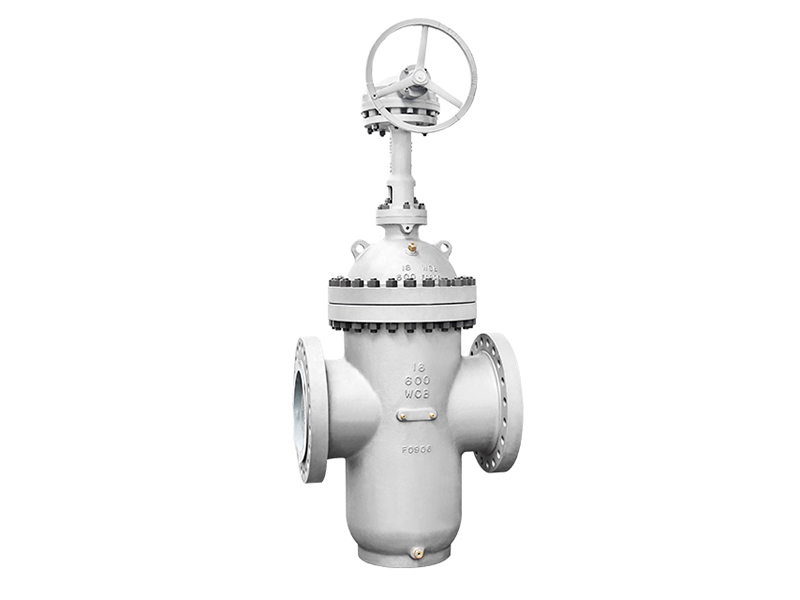

API 6D TC Slab Gate Valve

API 6D TC Slab Gate Valve

ONERO Through conduit slab type gate valves are an excellent choice for off-shore and pipeline applications. The slab gate valve designed to meet API 6D specification. Full bore design, suitable for pigging. Our product designed to allow in-line valve maintenance. The stem is completely covered during valve operation.

Application

API 6D Through conduit gate valves are typically suitable for wet, sour, liquid or gaseous hydrocarbon services. It is widely applicable for transmission pipeline system of natural gas 、oil products and chemical engineering.

Technical specification

Design & manufacturing standard as per API 6D

Face to face standard as per ASME B16.10 / API 6D

Fanged ends standard as per ASME B16.5 / MSS-SP-44

Testing & inspection standard as per API598 / API 6D

Product Range

· Body material: Carbon steel, Stainless steel, Alloy steel ,Monel, Duplex, Inconel

· Size range(s):1/2"～48"

· Pressure rating: Class150～Class 2500

· End connection: RF, RTJ, BW

· Working temperature: -46℃～+200℃

· Mode of operation: Hand wheel, gear box, Electric , Pneumatic , etc.

Design Features

· Full bore port for pigging and reduced pressure drop

· Full protected seat sealing faces

· Double block and bleed capability

· Tight mechanical seal fo high / low pressure

· Internal cavity pressure relief

· Sealant injectors for seats and stem

· Bi-directional
