Pressure Seal Globe Valve

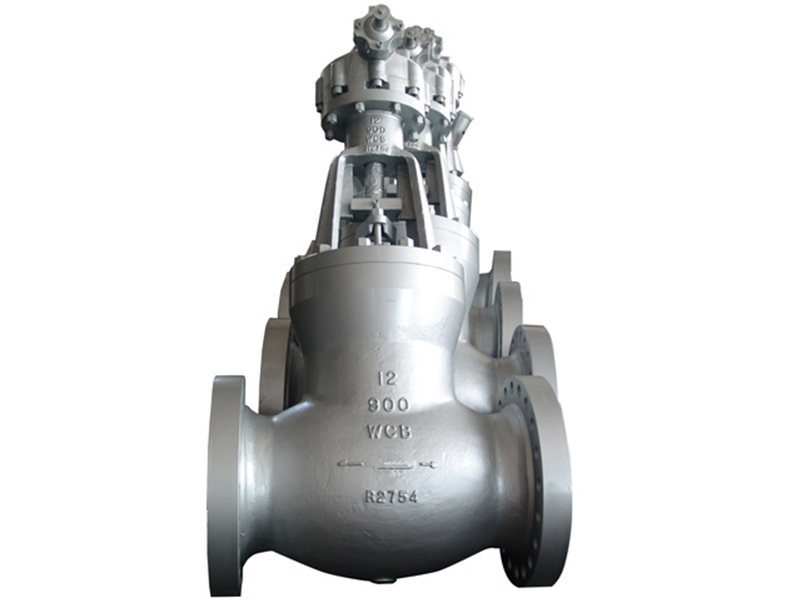

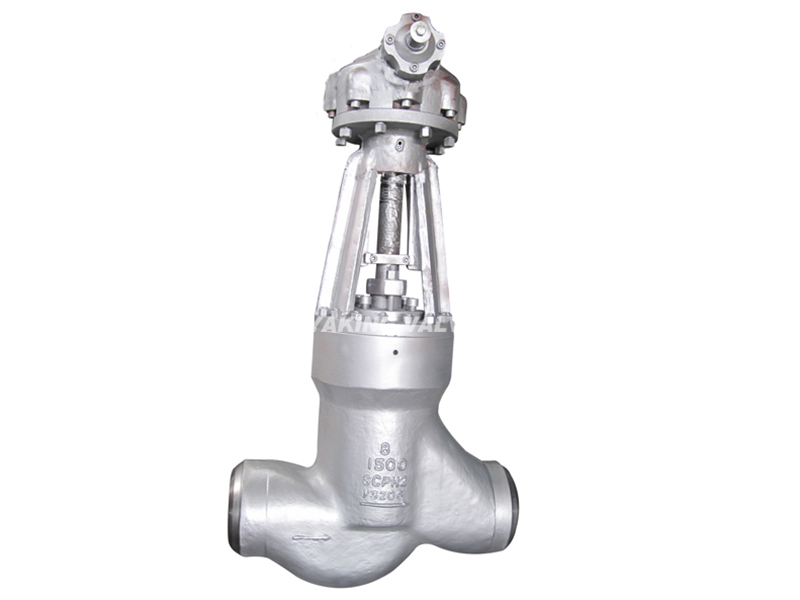

High Pressure Seal Globe Valve

ONERO high pressure seal globe valve’s top and bottom-guided disc assures stem ­operation without side thrust caused by high pressure flow. The non-rotating stem results in lower friction of all moving parts and longer stem packing life. All this resulting in smooth, easy operation and tight shutoff under extreme pressures.

Application

The high pressure seal valves are designed in accordance with BS1873 and ASME B16.34 for service of high temperature and high pressure and are widely used in fossil fuel power plant. Compared with bolted bonnet joint valves, it provides absolute reliable sealing of the bonnet joint, so that the pressure seal valves are more compact and rigid as well as maintenance cost-effective at high temperature and high pressure service.

Technical specification

Design & manufacturing standard as per BS1873 /ASME B16.34

Face to face standard as per ASME B16.10

Fanged ends standard as per ASME B16.5

Testing & inspection standard as per API598

Product Range

-Body material: Carbon steel, Stainless steel, Alloy steel ,Monel, Duplex, Inconel

-Size range(s):1/2"～24"

-Pressure rating: Class150～Class 2500

-End connection: RF, RTJ, BW

-Working temperature:-29℃～+560℃

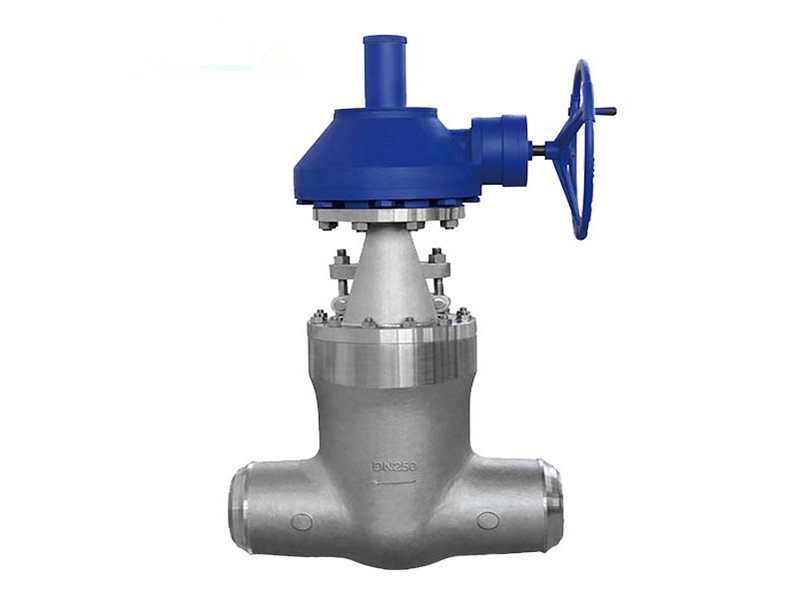

-Mode of operation: Hand wheel, gear box, Electric-actuator , Pneumatic- actuator, etc.

Design Features

Impactor handwheel for tight shutoff.

Body made of superior strength forgings and optional cast steel.

Optional live-loading of packing.

Hardfaced seating faces resist erosion.
